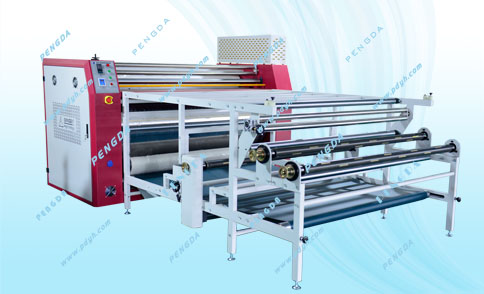

PD-1700D-1000

D series Multifunctional ModelThis PD-1700D multifunctional machine is specifically designed to meet the increasing demands for pieces digital printing, it can both do pieces and rolls. The transfer paper is placed side up on the table and feeds continuously into the machine, the waste paper and the transferred fabric exit under the working table. This model is economical and practical after our perfect development during these years. It is designed for production and sampling, especially has advantage in pre-cut pieces transfer, and it’s simple to operate. The design also allows for the use of protection paper to protect the belt from contamination. The customers can add more functions to the machine and optimize it according to their own requirements and our digital printing solutionsOptional width: 1200mm ~ 2600mmOptional drum diameter: 420mm-600mm-800mm-1000mm

  • Both transferring pieces and rolls, easy accessibility of the material

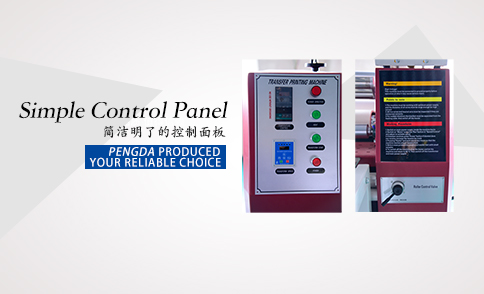

  • Easy to operate, simple setting of speed, temperature and pressure

  • With greater consistency and with fewer operators

  • The pre-cut pieces are easily placed because of the working table

  • The transferred fabrics are easily collected from the machine because of the conveyor belt

  • Cooling-down timer included

PD-1700D-1000
PD-1700D-1000
3 Phase 4 Wire 380V 50Hz
70Kw

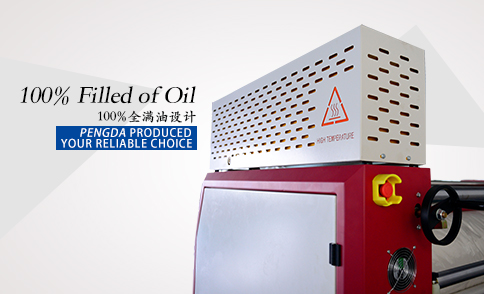

Oil Heating
1600mm
1000mm
2720mm*4200mm*2200mm
2500mm
4200KG
